Magellan Ventilator - MRI Compatible

• Demo Unit
• Unit in nice cosmetic and operational condition

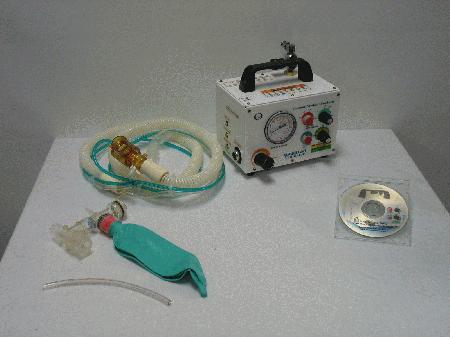

• Comes with items pictured
• Includes Operator's and Service Manual (on cd)

SPECIFICATIONS

• Dimensions: 8x5.5x5.5 inches
• Weight: 5.0 LBS
• Case Material: Aluminum
• All other Materials: Aluminum, brass and plastic
• Gas Inlet Pressure Range: 30 to 150 PSI
• Tidal Volume Range: 0 to 2.0 L
• Breaths Per Minute: 0 to 60 BPM
• Inspiratory Time Range: 0.2 to 3.0 seconds
• Inspiratory Flow: Range 0 to 100 LPM
• Pressure Relief Range: 0 to 120 CMH20
• IMV/CPAP Continuous Flow Range: 0 to 60 LPM
• PEEP/CPAP Range: +1 to +50 CMH20
• Internal Compliance: 0 CMH20
• Air/Oxygen Blenders: Any capable of producing from 30 to 60 PSI
• Exhalation Valves: Oceanic-P/N 15.0 reusable
• MRI: to 4.7 TESLA

The Magellan Ventilator is pneumatically powered, single-circuit, volume-constant, time-cycled. It utilizes a high-pressure drive with regulated, high internal resistance to control pressure and is considered a non-constant pressure generator. Simultaneously, the Magellan Ventilator produces a flow pattern that is constant in spite of changes in lung mechanics (inspiratory square-wave). Originally designed, tested and utilized for military field work, the Magellan Ventilator is able to be used in ly any demanding environment such as In-Hospital Transport, Air-Mobile Operations, Special Treatment Areas, Operating and Recovery Rooms, Animal Laboratories and Veterinary Medicine. The Magellan Ventilator is designed with internal simplicity for operations and maintenance. Quick connect features allow the operator to provide for all necessary clinical situations: controlled ventilation, continuous-flow intermittent mandatory ventilation, constant positive airway pressure, as well as being adjustable to inspiratory/expiratory ratios that are infinitely variable. A wide-range pressure relief valve allows for both the prevention of barotrauma and time-cycled, pressure-relieved ventilation. In standard use, the Magellan Ventilator can be used in conjunction with a variety of face masks, cricothyroid tubes, endotracheal and tracheostomy tubes. Humidifiers and air/oxygen blenders of various types can also be used, as the operator finds necessary.
